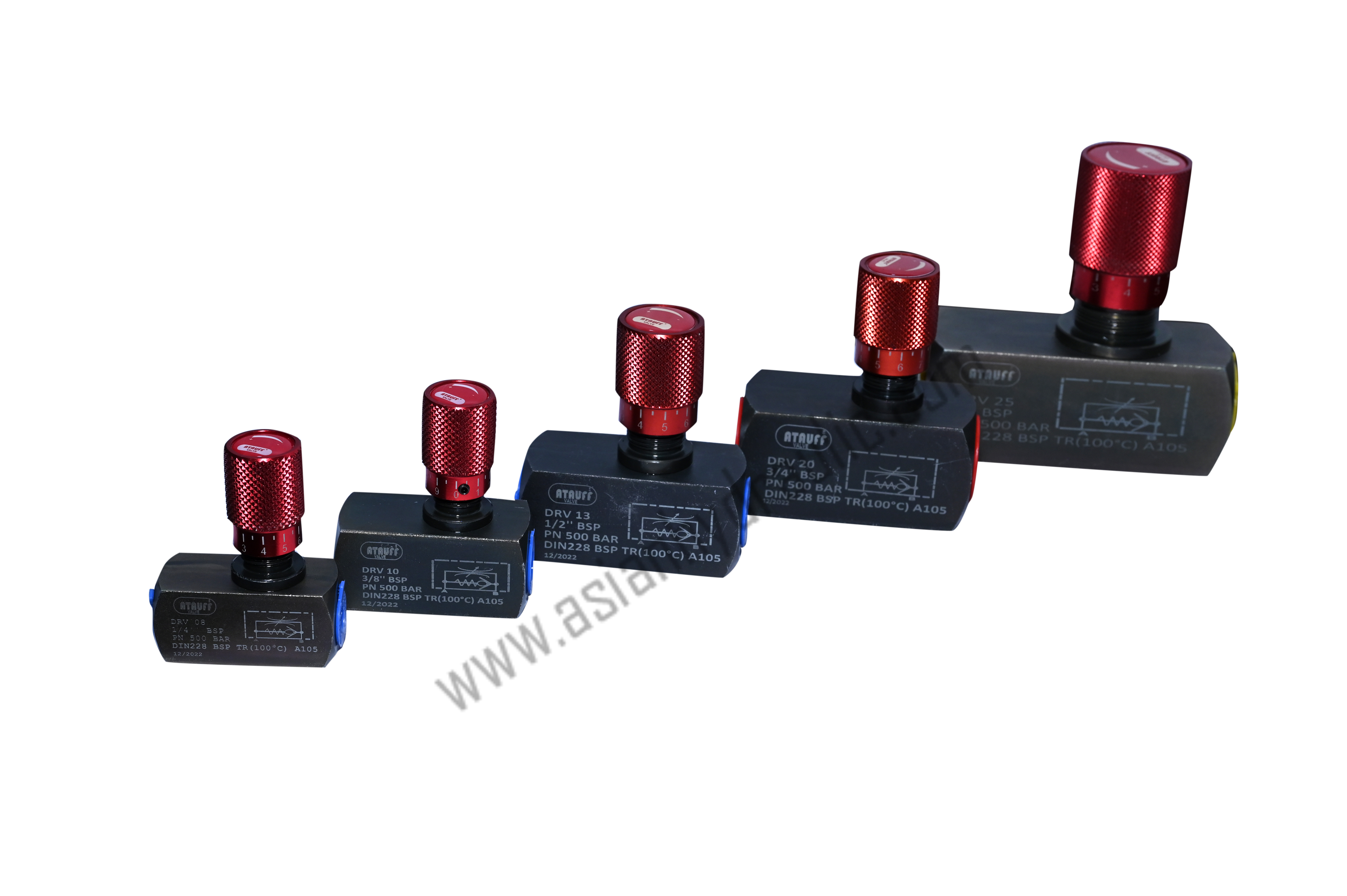

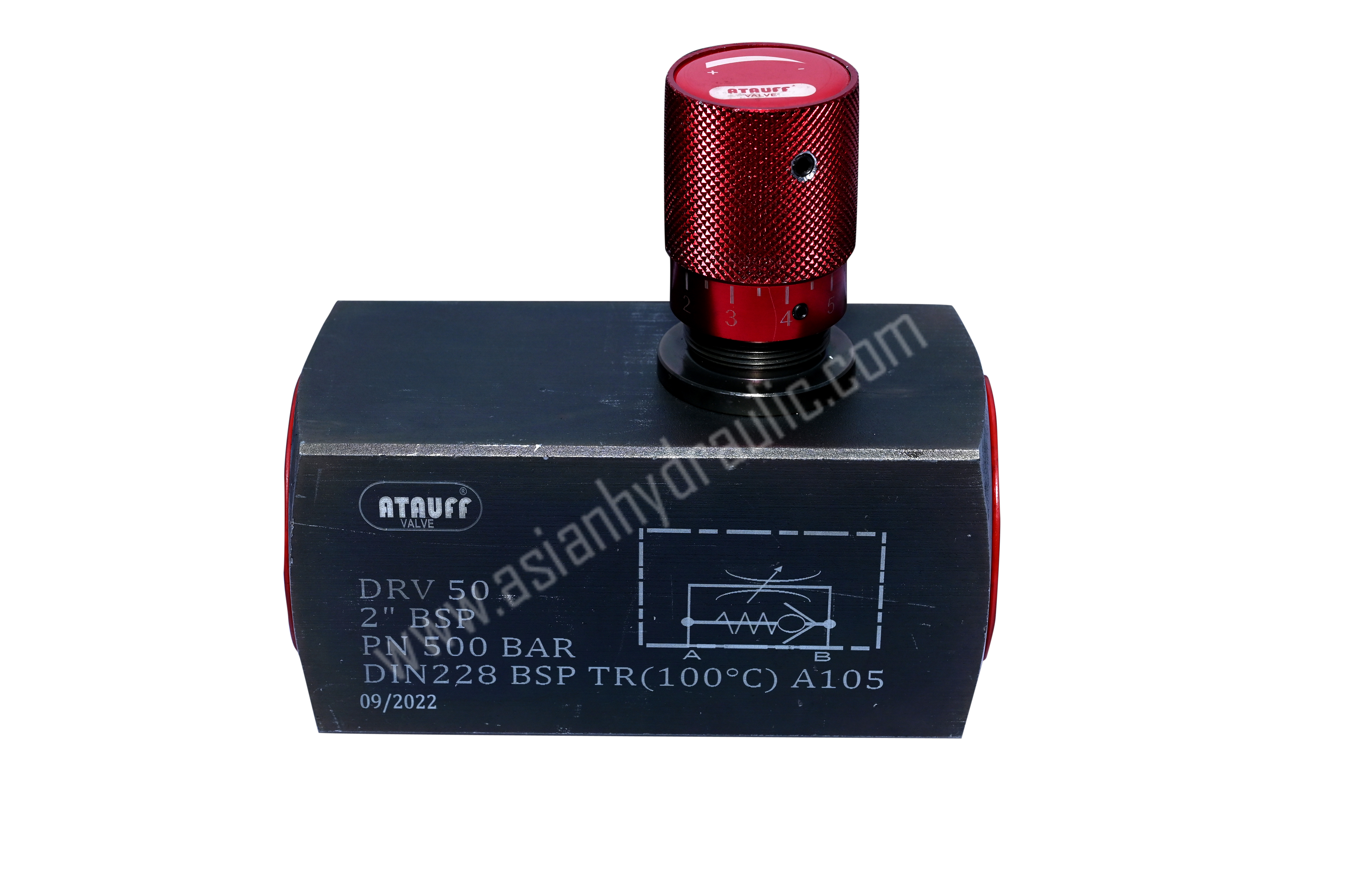

Flow Control Valves with check valves

Model : DRV series

Flow control valves are widely used range in industries and as named they are applied in controlling of flow. This range is available in high pressure rating and through knob rotation we can control the flow of media as per required. On knob, we have label to indicate the flow and hence accuracy of flow can be achieved. Locking system is arranged to lock the valve so no auto tuning is occurred. As named this valves are manufactured with facility of inbuilt check valve. This eliminates the possibility of back pressure.

Features

700bar operating pressure

Temp. rating 20°C to 250°C

1/8" - 1 1/2"

Eliminates Back Pressure

BSP and NPT End connections

Flows to 80 gpm

Carbon steel housing

FPM (Viton®) O-rings (standard)

Graduated knob and color spindle for accurate flow control

Provision for panel mounting
